Improve Building Efficiency: Choose the Ideal Sandwich Panel

Improve Building Efficiency: Choose the Ideal Sandwich Panel

Sandwich panels are widely used materials in modern construction due to their excellent thermal insulation, soundproofing capabilities, and good strength. They are utilized in buildings, cold storage, factories, and other projects. Before making a purchase, it is crucial to understand the definition, uses, and pros and cons of sandwich panels. Here’s a simplified overview to help you make an informed choice.

What are Sandwich Panels?

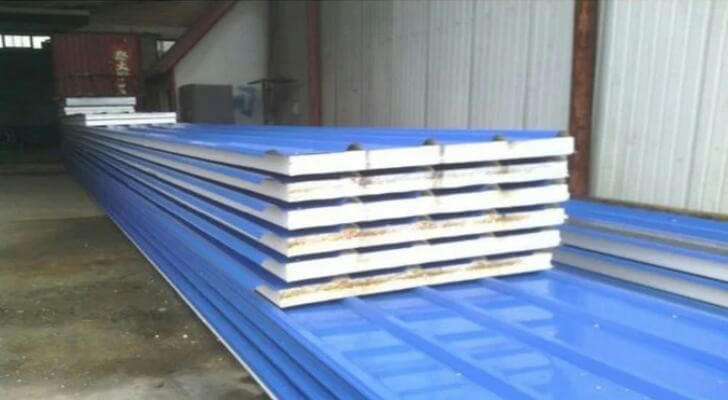

Sandwich panels are lightweight and sturdy construction materials composed of two outer panels and an inner core, providing insulation, soundproofing, and fire resistance among various functions.

  • Panel Materials: Commonly used panel materials include galvanized steel, pre-coated steel, stainless steel, or aluminum, which enhance the strength and corrosion resistance of the sandwich panels.

  • Core Types: The cores typically consist of Expanded Polystyrene (EPS), Polyurethane (PU), and rock wool, which determine the thermal insulation and soundproofing effectiveness of the panels.

Common Specifications

  • Thickness: 30mm, 40mm, 50mm, 75mm, 100mm, 150mm, 200mm.

  • Width: Usually 1000mm or 1200mm.

  • Length: Customizable based on requirements, with a maximum length of 12 meters.

Discounts for first time purchases.

Advantages and Disadvantages of Sandwich Panels

Advantages

  • Good Thermal Insulation: Effectively reduces energy consumption, especially in cold winters.

  • Excellent Soundproofing: Effectively blocks noise, providing a quiet environment.

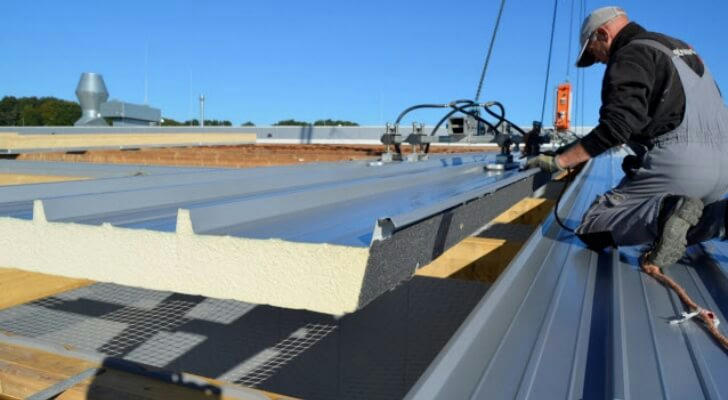

  • Easy Installation: The lightweight design allows for quick and convenient installation, saving labor and costs.

  • Strong Fire Resistance: Rock wool cores perform exceptionally well in enhancing fire safety.

Disadvantages

  • High Initial Cost: Compared to traditional construction materials, the upfront investment is higher.

  • Relatively Low Load-Bearing Capacity: May require additional structural support.

  • Complex Waterproofing Requirements: Particularly when used on roofs, waterproofing construction needs special attention.

How to Choose Sandwich Panels?

  1. Define Usage: Select the appropriate product based on the intended application (such as roofs or walls) and the local climate conditions.

  2. Choose Suitable Specifications: For cold storage, it is recommended to use panels with a thickness of 150mm or more.

  3. Pay Attention to Brand Quality: Choose reputable manufacturers to ensure product quality and after-sales service.

  4. Consider Installation Convenience: Products that are easy to transport and install can reduce construction challenges.

  5. Assess Cost-Effectiveness: Consider both upfront costs and long-term benefits to make an informed decision.

Case Study: Cold Storage Insulation Application

In a northern food processing factory, to improve the thermal insulation of their cold storage, they chose 150mm thick Polyurethane (PU) sandwich panels. The results showed a reduction in winter energy consumption by approximately 30%, a significant increase in construction speed, and a substantial decrease in long-term maintenance costs.

As the construction industry increasingly focuses on environmental protection and energy efficiency, the demand for sandwich panels is expected to continue growing. In the future, more new eco-friendly materials and technologies may emerge to enhance the performance of sandwich panels and reduce costs. Additionally, the rise of smart buildings will drive innovation in the integration and multifunctionality of sandwich panels.

Conclusion

Choosing the right sandwich panels can significantly enhance building efficiency and save energy and costs. When making your selection, it is advisable to combine specific needs and data comparisons to ensure you choose the most suitable solution.
