How to Choose Sandwich Panels

How to Choose Sandwich Panels

Sandwich panels are widely used in the construction industry, particularly in industrial, commercial, and residential buildings. These panels typically consist of two outer layers and an insulating core material in between. While they offer significant advantages, choosing the right sandwich panel requires consideration of various factors. This article discusses the benefits of sandwich panels, selection criteria, and relevant policies and regulations.

1. Benefits of Sandwich Panels

Sandwich panels offer numerous advantages that make them a crucial material in the construction industry:

1. Excellent Thermal Insulation

The core materials of sandwich panels, such as polyurethane (PU), expanded polystyrene (EPS), or mineral wool, have low thermal conductivity, effectively preventing heat transfer. This improves the energy efficiency of buildings, reducing air conditioning and heating costs and lowering overall energy expenses.

2. Lightweight and High Strength

Sandwich panels are designed to have high strength and impact resistance while remaining lightweight. Compared to traditional masonry or concrete structures, they are easier to install and transport, which reduces construction time and costs.

3. Fire Resistance

Some sandwich panels, such as those using mineral wool as the core material, offer excellent fire resistance. According to the National Fire Protection Association (NFPA) standards, certain types of sandwich panels can meet fire safety requirements, slowing the spread of fire in case of an incident and enhancing building safety.

4. Weather and Corrosion Resistance

The outer layers of sandwich panels are usually made from galvanized steel or aluminum with an anti-corrosion coating, enabling them to withstand harsh weather conditions and chemical exposure. This ensures a long lifespan even in environments with high humidity or salt exposure.

5. Easy Installation

Sandwich panels feature modular designs that allow for quick and easy installation, significantly shortening the construction period. They are often used in temporary buildings, portable rooms, and cold storage facilities where fast construction is needed.

2. How to Choose Sandwich Panels

Selecting suitable sandwich panels requires careful consideration of factors such as the usage environment, project requirements, material characteristics, and more. Here are some key criteria:

1.Material Selection

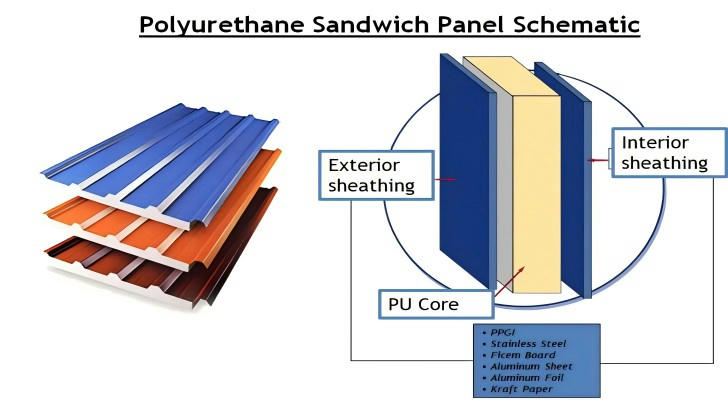

  • Polyurethane Sandwich Panels (PU): Ideal for environments with high insulation requirements, such as cold storage and refrigerated warehouses. While polyurethane provides excellent thermal insulation, its fire resistance may be relatively low, necessitating additional fire protection measures.

  • Mineral Wool Sandwich Panels: Known for their superior fire resistance, mineral wool panels are suitable for industrial buildings or public areas with strict fire safety requirements. They also offer good sound insulation.

  • Expanded Polystyrene Sandwich Panels (EPS): EPS is a cost-effective material suitable for projects with limited budgets. However, its thermal and fire performance is generally inferior to polyurethane and mineral wool panels.

2.Choosing the Thickness

Different panel thicknesses are appropriate for different applications. Generally, thicker panels offer better thermal and acoustic insulation but come at a higher cost. For high-efficiency insulation in cold storage, panels with a thickness of 100mm or more are recommended, while for general industrial buildings, a thickness of 50mm to 75mm may suffice.

3.Outer Layer Material

The choice of outer layer material should be based on the environmental conditions where the building is located. In corrosive environments, such as coastal areas, aluminum or stainless steel may be more suitable for the outer layer. Additionally, selecting the right coating is important; some manufacturers offer special anti-corrosion coatings to extend the panel's lifespan.

4.Product Certifications and Quality Standards

When you buy sandwich panels in the U.S., ensure the products comply with relevant building standards and certifications, such as those from the Metal Building Manufacturers Association (MBMA) or the American Architectural Manufacturers Association (AAMA). Products should also meet the requirements of the U.S. Department of Energy (DOE) and local energy efficiency standards.

3. Regulations on Sandwich Panels

For example in the U.S., each state has different policies and regulations regarding the use of sandwich panels. Some areas also emphasize the environmental and energy performance of building materials. Understanding these policies can help in selecting the right panels:

1.Building Energy Efficiency Regulations

Energy efficiency standards vary across states, with the California Energy Commission (CEC) setting some of the strictest requirements, mandating specific insulation and airtightness standards for buildings. Sandwich panels are often able to meet or exceed these requirements due to their excellent thermal performance.

2.Fire Safety Regulations

According to the National Fire Protection Association (NFPA), commercial and public buildings are required to use fire-resistant materials. For high-rise buildings or large public facilities, using mineral wool sandwich panels with high fire performance may be the best option to meet regulatory requirements. Additionally, some local governments may mandate compliance with the International Building Code (IBC) for building materials.

3.Environmental Certifications

Certain states have specific requirements for the environmental performance of building materials, such as the use of recyclable or low volatile organic compound (VOC) materials. Manufacturers of sandwich panels often provide environmental certification, such as LEED (Leadership in Energy and Environmental Design), to meet local green building policies.

4.Acoustic Standards

In noisy areas, such as airports or industrial zones, local governments may have strict sound insulation standards. Mineral wool sandwich panels, with their superior sound insulation properties, are widely used in such scenarios.

4. Conclusion

Sandwich panels are widely used in the construction market. construction market due to their advantages, including superior thermal insulation, lightweight design, high strength, and fire resistance. When choosing sandwich panels, consider factors like material type, thickness, outer layer material, and product certifications. Additionally, understanding and adhering to local energy efficiency, fire safety, environmental, and acoustic regulations will ensure compliance. Selecting the appropriate sandwich panels according to project requirements can enhance building performance and prolong the service life.

When making a purchase, it is advisable to choose reputable brands and review the specifications and certification information to ensure the quality meets expectations.
